Description

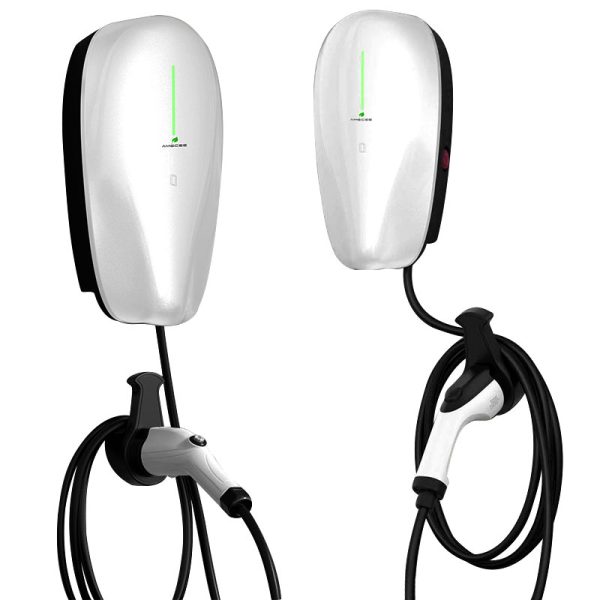

Datasheet | Model | HSAC7KW | |
Input | Power Supply | 1P+N+PE | |
Rated Voltage | 230V AC | ||
Rated Current | 32A | ||
Frequency | 50/60Hz | ||
Output | Output Voltage | 230V AC | |
Maximum Current | 32A | ||
Rated Power | 7kW | ||
User Interface | Charge Connector | Type 2 socket | |
Enclosure | Galvanized steel | ||
LED Indicator | Green/Yellow/Red | ||
RFID Reader | Mifare ISO/IEC 14443 A | ||
Start Mode | RFID card | ||
Emergency Stop | Yes | ||
Communication | WiFi | Optional | |
Ethernet | Optional | ||
3G/4G | Optional | ||
OCPP | OCPP 1.6 Json | ||
Safety | Energy Meter | Optional | |
RCD | 30mA Type A + 6mA DC | ||
Ingress Protection | IP54 | ||
Impact Protection | IK08 | ||
Electrical Protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection | ||
Certification | CE | ||
Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 | ||
Warranty | 1 years | ||
Environment | Installation | Wall-mount/Pole-mount | |
Work Temperature | -30℃~+50℃ | ||
Work Humidity | 5%~95% | ||
Work Altitude | <2000m | ||
Package | Product Dimension | 313*246*100mm (H*W*D) | |
Package Dimension | 460*400*170mm (L*W*H) | ||
Net Weight | 4.0kg | ||
Gross Weight | 4.5kg | ||
External Package | Carton | Carton |
